phylum porifera:
slide 1.
Grantia  w.m.- preserved slide;           4x: slide your stage back and             forth so you can draw the entire         length of the organism. Label             the osculum






​slide 2.
Grantia l.s – preserved slide

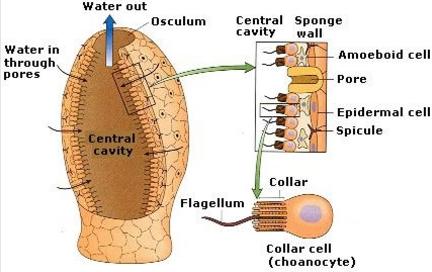

    draw and label the choanocytes         with flagella at (40x).
Q: What is the function of the choanocytes?

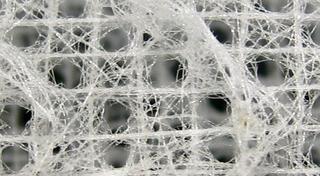

​3. glass sponge.
a) Draw the glass sponge.








​

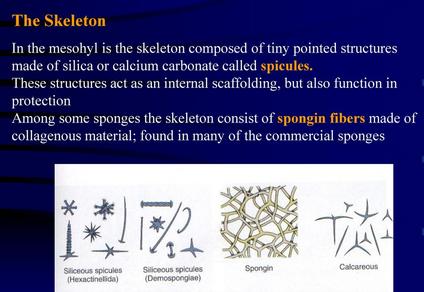

​b) Draw and label Grantia spicules that came from the glass sponge; prepared slide  10x.










​


4. commercial sponge.
a. Draw the large commercial sponge. Label osculum and ostia.









​

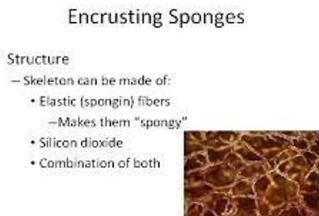

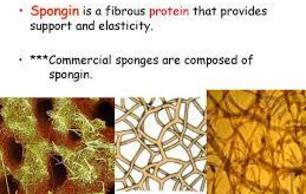

b) Draw and label the spongin fibers that make up a commercial sponge;  w.m “sponge skeleton” slide. 10x.








​

           lum Platyhelminthes
             Class Turbellaria

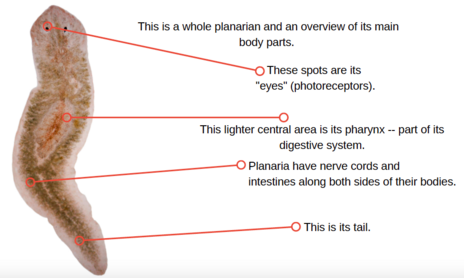

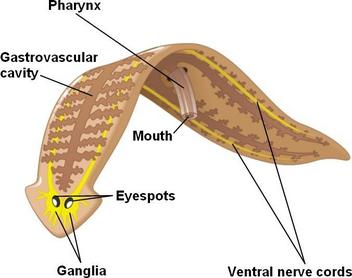

8. Prepare and draw a live specimen of a Planarian in a dish, 4x.
Label eyespots, auricles. Use a dissecting scope.

9. Draw and label the indicated parts on the Planarian model.



             Class Trematoda

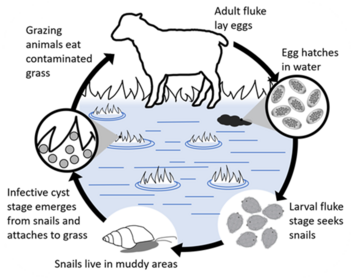

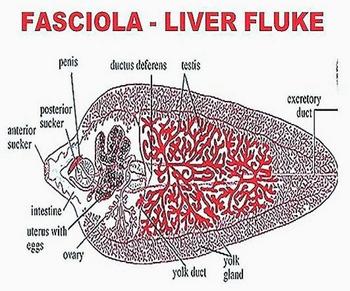

10. Draw the preserved specimen of a sheep liver fluke. Indicate the anterior end and label suckers.






​



​
11. Draw both of the sheep fluke larval stages; the radiae and cercaria: 10x.

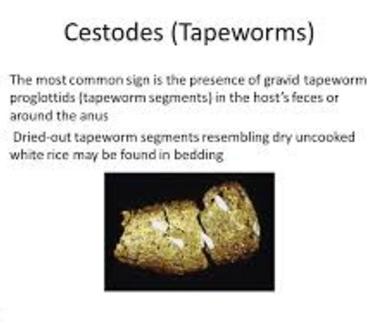

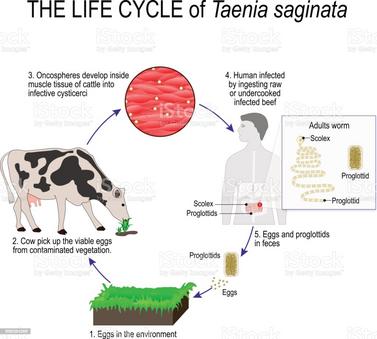

                Class Cestoda
12. Draw and label the tapeworm scolex. w.m. 10x. label the hooks.






​

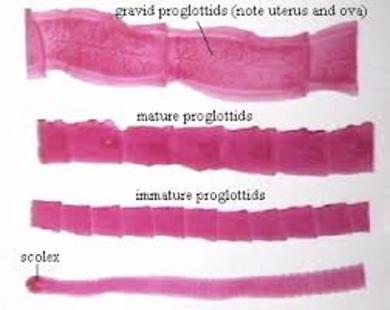

13. Draw the tapeworm w.m prepared slide composite. 4X
Do three drawings and label
a.) first segment:  immature proglottids,
b.) second segment:  mature proglottids with gonads,
c.) third segment:  gravid proglottids with eggs.

​

phylum cnidaria
​(coelenterata)

more Kingdom Animalia invertebrates:

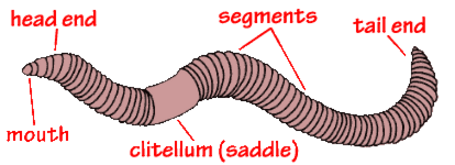

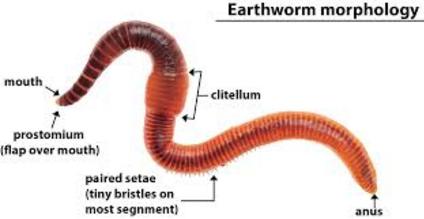

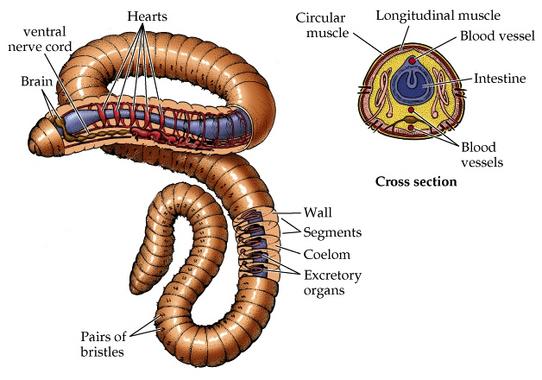

phylum annelida

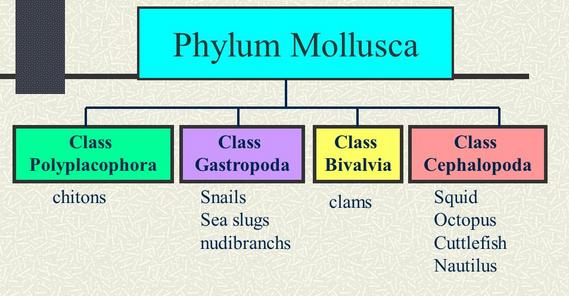

phylum mollusca

phylum arthropoda

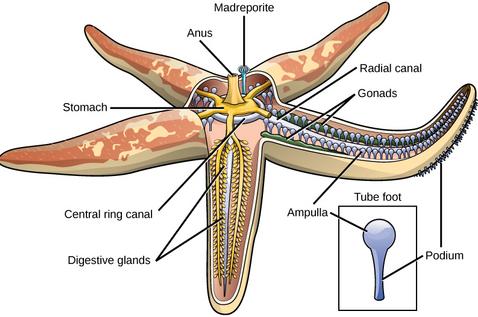

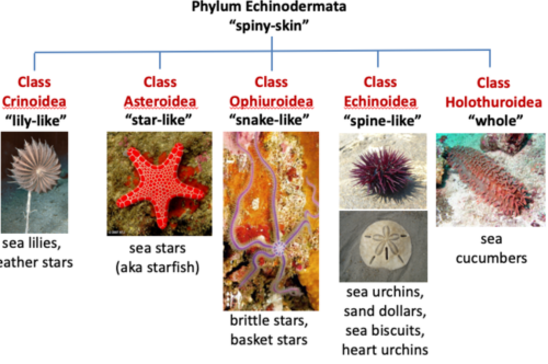

phylum echinodermata

​and then there are the

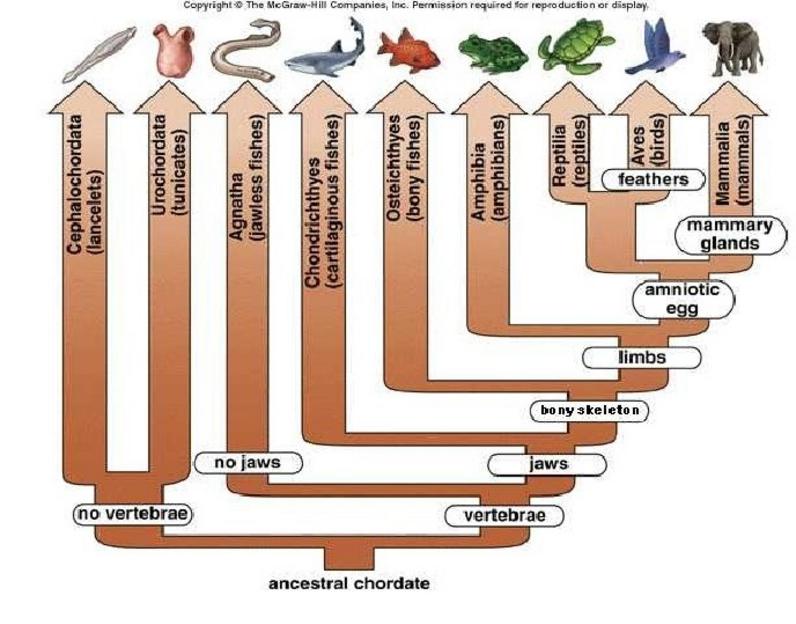

Kingdom Animalia chordates:

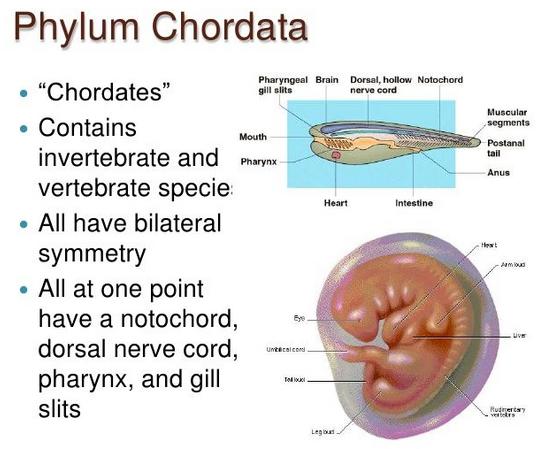

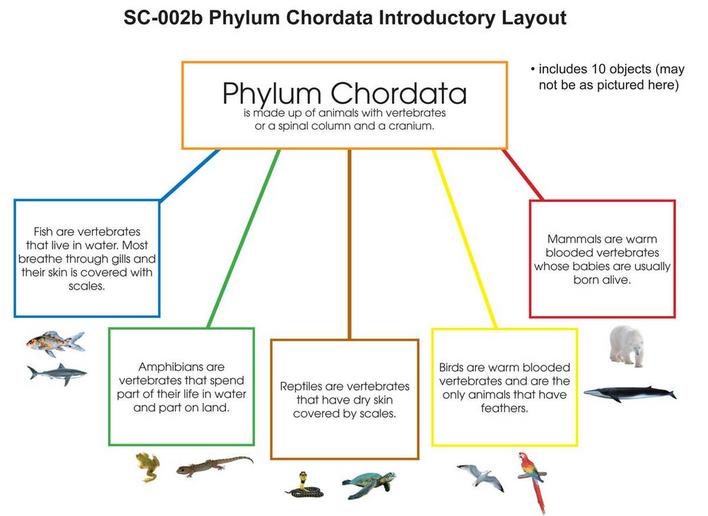

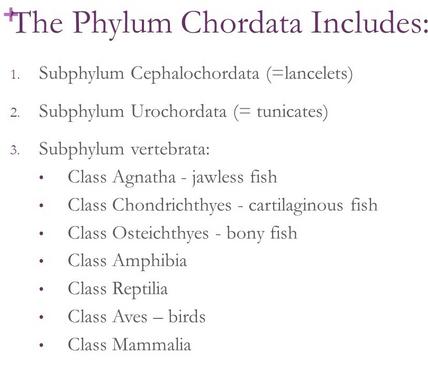

phylum chordata

Phylum Rotifera
rotifers are microscopic, multicellular, organisms that are currently under taxonomic revision.

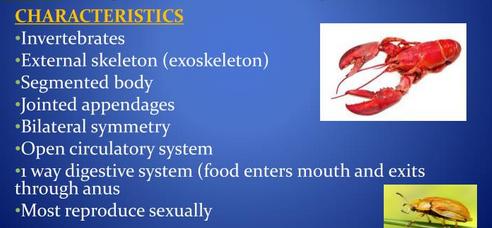

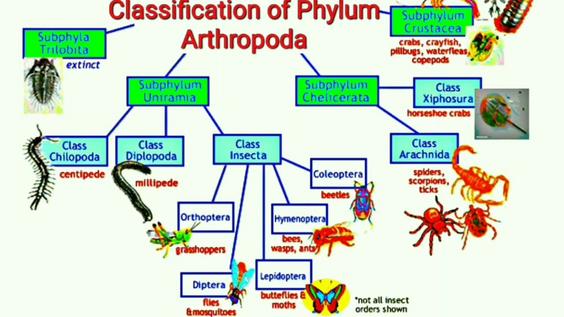

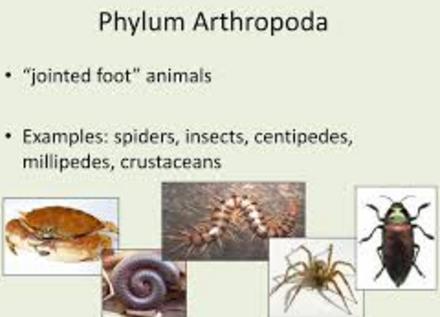

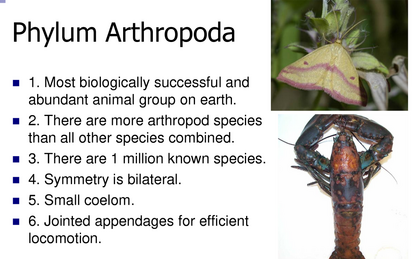

phylum arthropoda

Phylum Platyhelminthes

Kingdom Animalia includes
​ several phyla:
​Phylum Porifera
Phylum Cnidaria
Phylum Platyhelminthes
Phylum Nematoda
Phylum Annelida

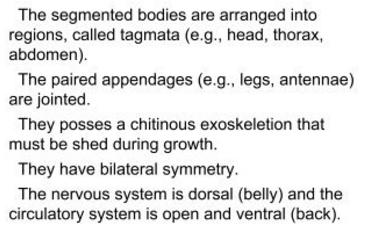

Phylum Arthropoda
Phylum Mollusca
Phylum Echinodermata
​Phylum Chordata

ALL
except members of
Phylum Chordate
​are invertebrates

phylum porifera

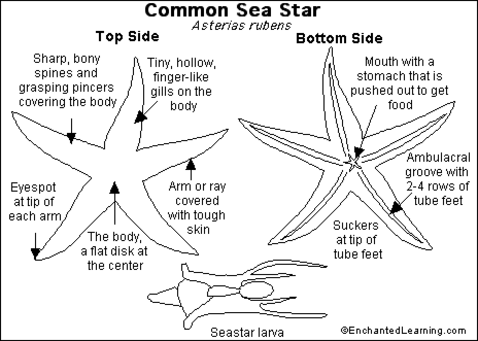

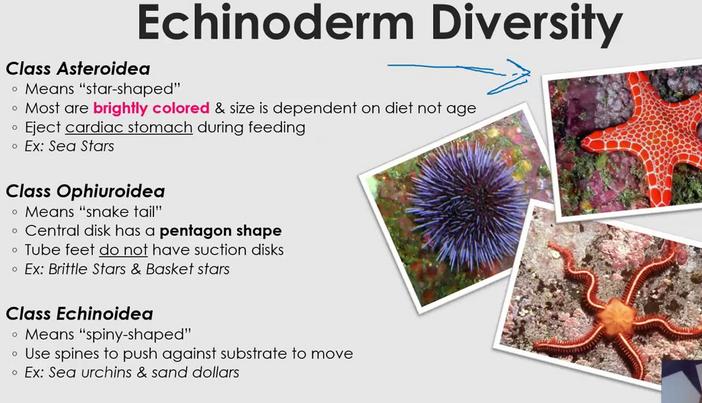

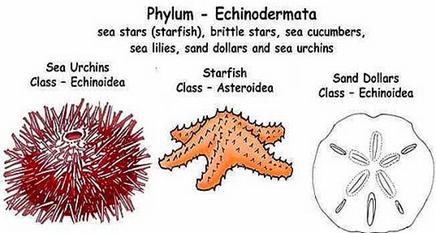

phylum echinodermata

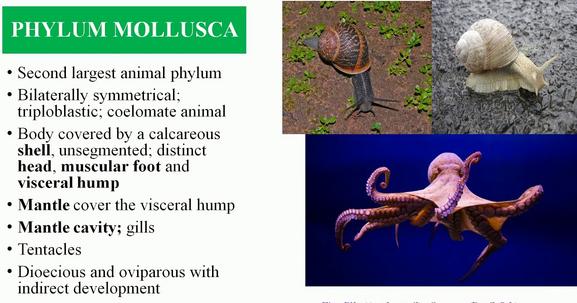

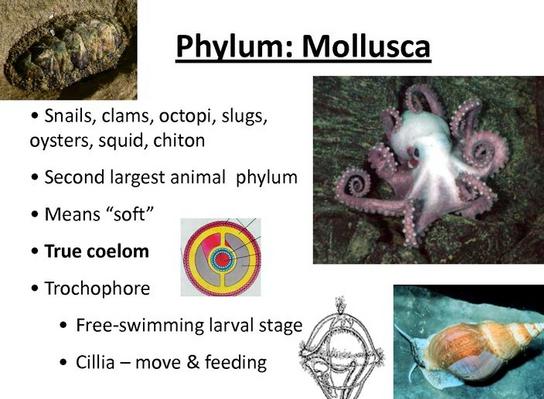

phylum mollusca

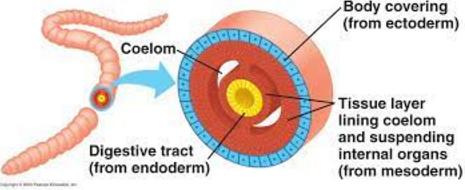

phylum annelida

    Phylum Nematoda
​

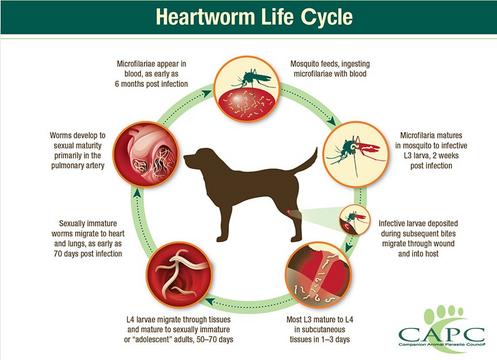

14. Draw and label Dirofilaria immitis (dog heartworm), and red blood cells from a prepared slide. 40x.









​

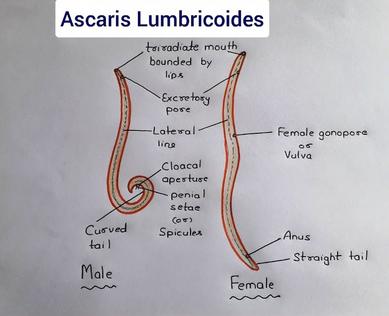

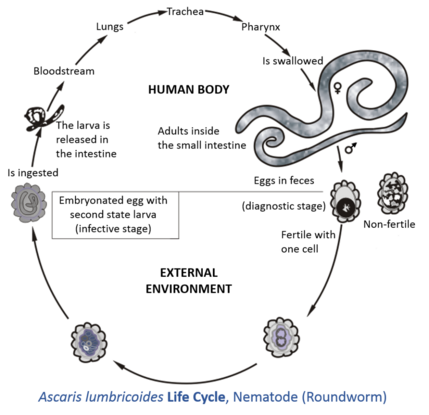

15. Draw the preserved specimen of Ascaris (parasitic nematode). Draw and be able to distinguish between male and female








​

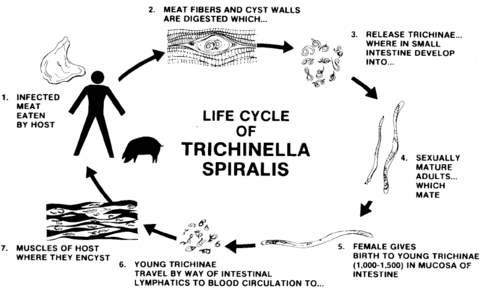

​16. Draw encysted Trichinella in pork muscle, w.m prepared slide. 10x. Label the muscle, cyst and nematode.









​17. Draw the live specimen of a free-living nematode. 10x.

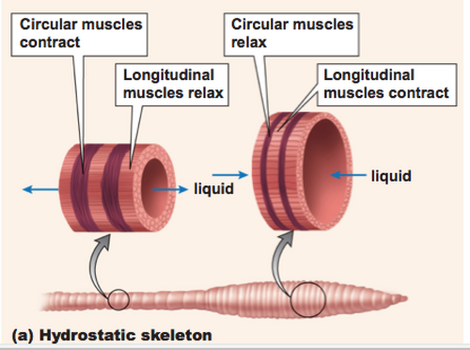

​Q: Why do nematodes move in a whip-like fashion?
Nematodes move by contracting their longitudinal muscles which causes their bodies to flex laterally.

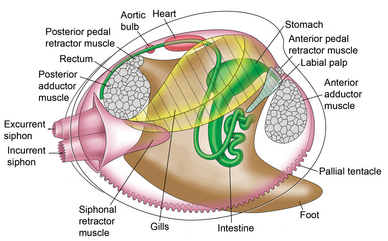

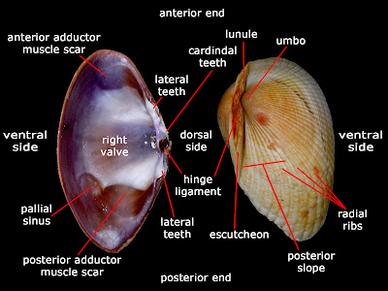

class bivavlia

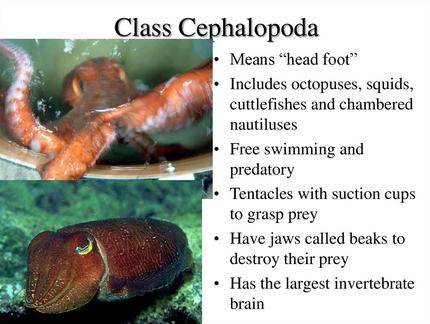

class cephalopoda

                    phylum cnidaria

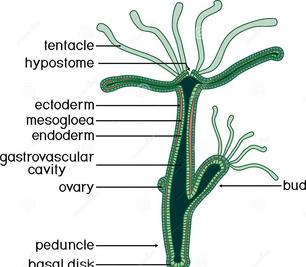

​5. Hydra w.m. – preserved slide or live in concave slide; 4X - label tentacles, mouth, basal disc.

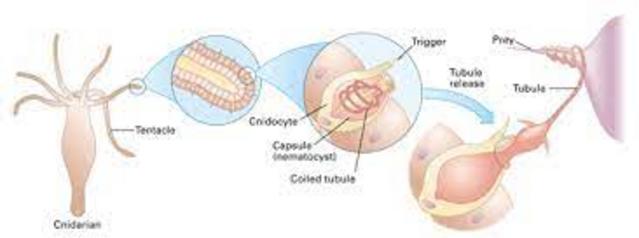

Q: What are the stinging cells called?


















​

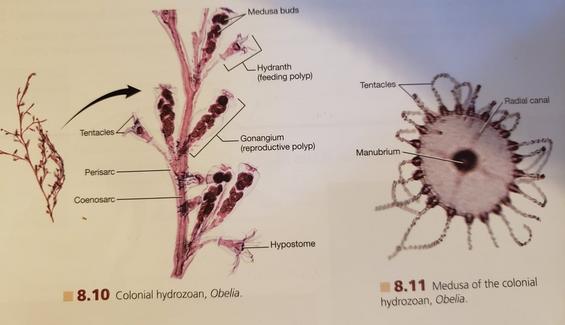

​6. Obelia is a dimorphic Cnidarian with both polyps and medusa in its life cycle.
Draw the Obelia polyps w.m. slide; 4/10x
Label the feeding hydranth polyp and tentacles.
Label the reproductive gonangium polyp.
Q: What are inside the gonangium polyps?






​

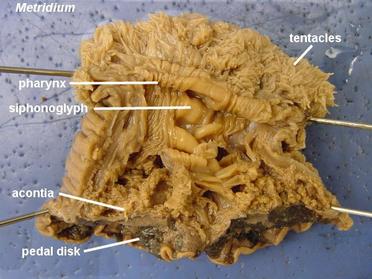

​7. Sea Anemone dissected specimen: Draw and label pharynx, pedal disk, oral disk, and tentacles.

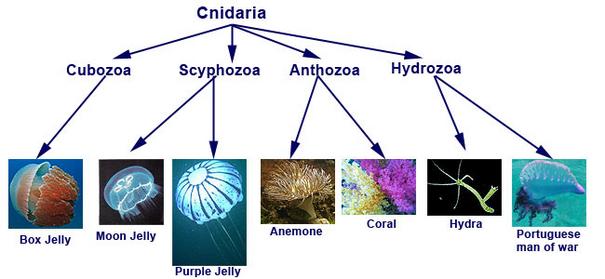

Q: What other animals are in the Phylum Cnidaria?












​

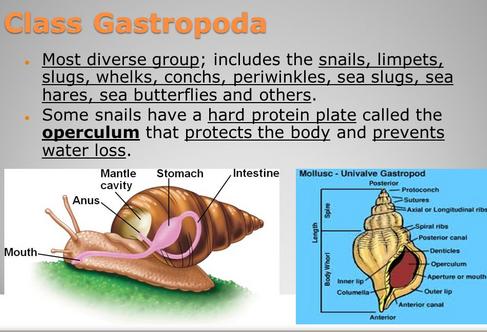

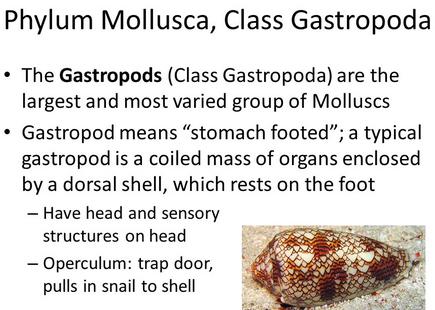

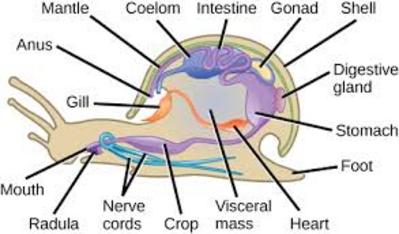

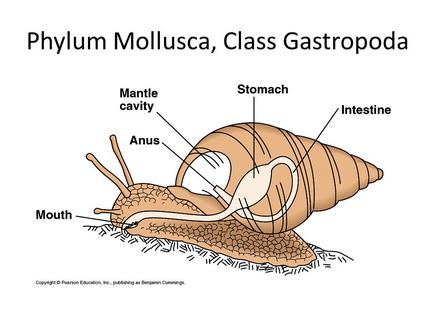

class gastropoda

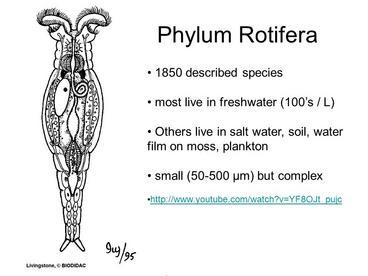

    Phylum Rotifera

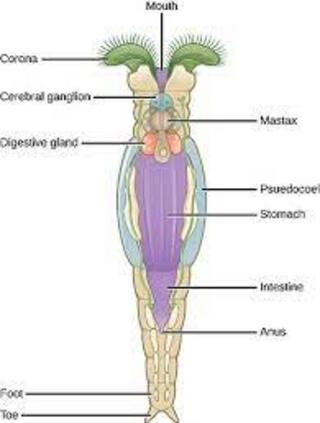

18. draw the live specimen of a rotifer. 10x Label corona, cilia, foot
(corona = a rotating structure covered with cilia)







​
​

Phylum Nematoda

Kingdom Animalia:
​Invertebrates

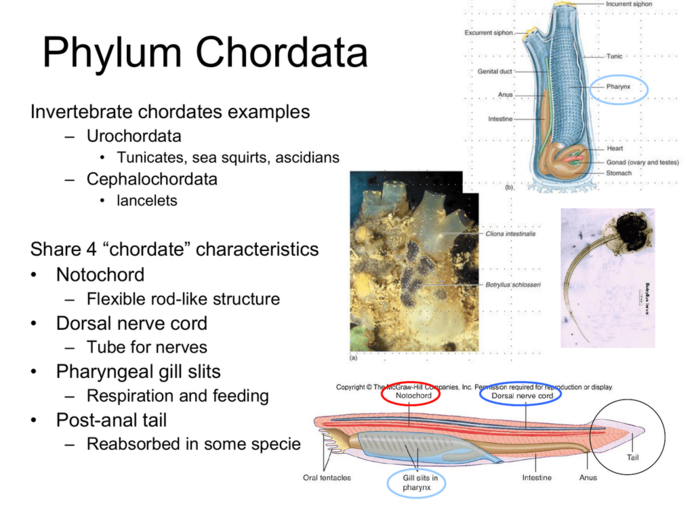

phylum chordata
